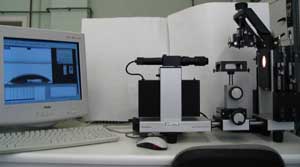

Classification:

• physico-chemical investigation apparatus (surface investigation)

•


Application:

• investigation of surface phenomena according to wettability characteristics

• investigation of fluids, tablets, dragees, films

•

• Measurable, Calculable:

• contact angle (CA, q)

• surface/interfacial tension (g)

• surface energy of solid materials

• advancing/receding CA

•


Measurement:

• statistic and measurement analysis

• computer control

• investigation of liquid-solid-air and liquid- liquid surface

• sessile, captive and pendant drop methods

•


Specifications:

• thermostable

• CCD camera

•


Dataprocessing:

• computer software (SCA20)

• exportable data (Excel)

•


Description, other information:

• operating instructions

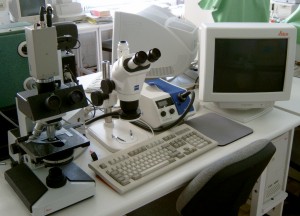

Classification:

• physical investigation apparatus (image processing microscope)

•


Application:

• preformulatory investigations (particle size distribution)

• investigation of emulsions (drop size-analysis)

•


Measurement:

• computer software

• particle size, form parameters

•


Specifications:

• Leica-Zeiss optics, CCD camera (JVC)

• Zeiss stereomicroscope, Laborlux light microscope

• programing available

•


Dataprocessing:

• computer software (Leica Q500MC Qwin V01.02)

• exportable data (Excel)

•


Description, other information:

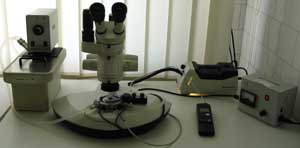

Classification:

• physical investigation apparatus (thermal effects)

•


Application:

• determination of melting point

• investigation of the changes according to heat

• investigation of melt crystallisation

•


Specifications:

• Leica-Zeiss optics, CCD camera attachable

• snap and video taking

•


Description, other information:
